Exterior Hinges: Sun Welding offers heavy-duty exterior hinge sets with a full 180° swing door, allowing easy door removal for transportation convenience.
Solid Steel Plate: Sun Welding offers a variety of durable steel plate options for their Heirloom Series, including solid doors ranging from 3/16" to 1/2" and bodies from 12 Gauge (7/64") to 3/16". The door frame is constructed from sturdy 3/16" steel to ensure security and prevent bending, similar to composite drywall doors. Additionally, the recessed door provides extra protection and the heat-activated seal can expand up to 7 times its size to effectively seal out smoke and heat. The bodies are continuously welded for unmatched durability.

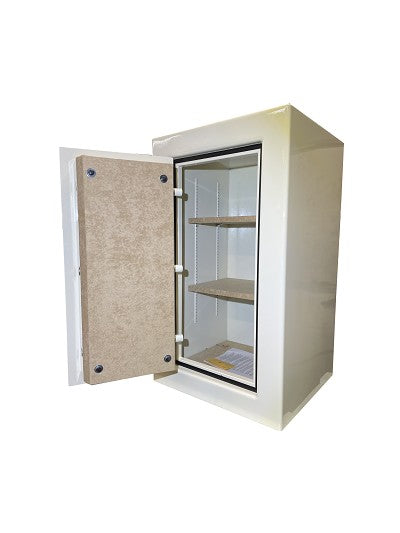

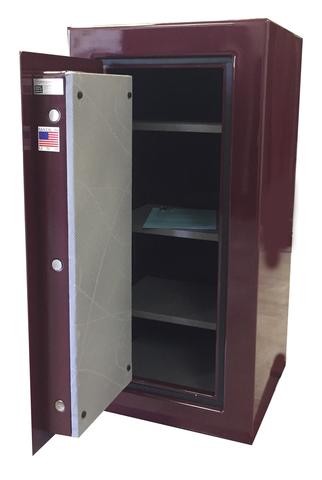

Interior Finish: Sun Welding enhances security by lining all six walls with 5/8" fire board. Durable 3/4" particle board is meticulously handcrafted to create the interior, which can be customized with your choice of velour fabric in various shades.

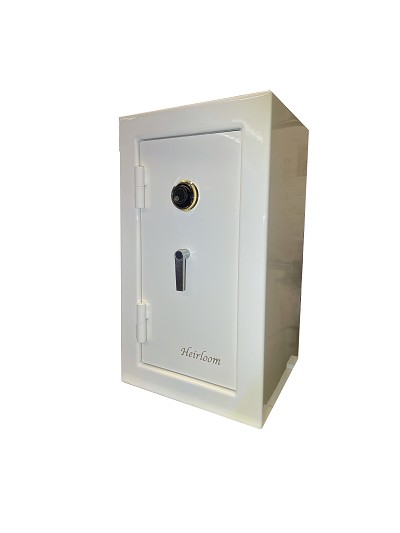

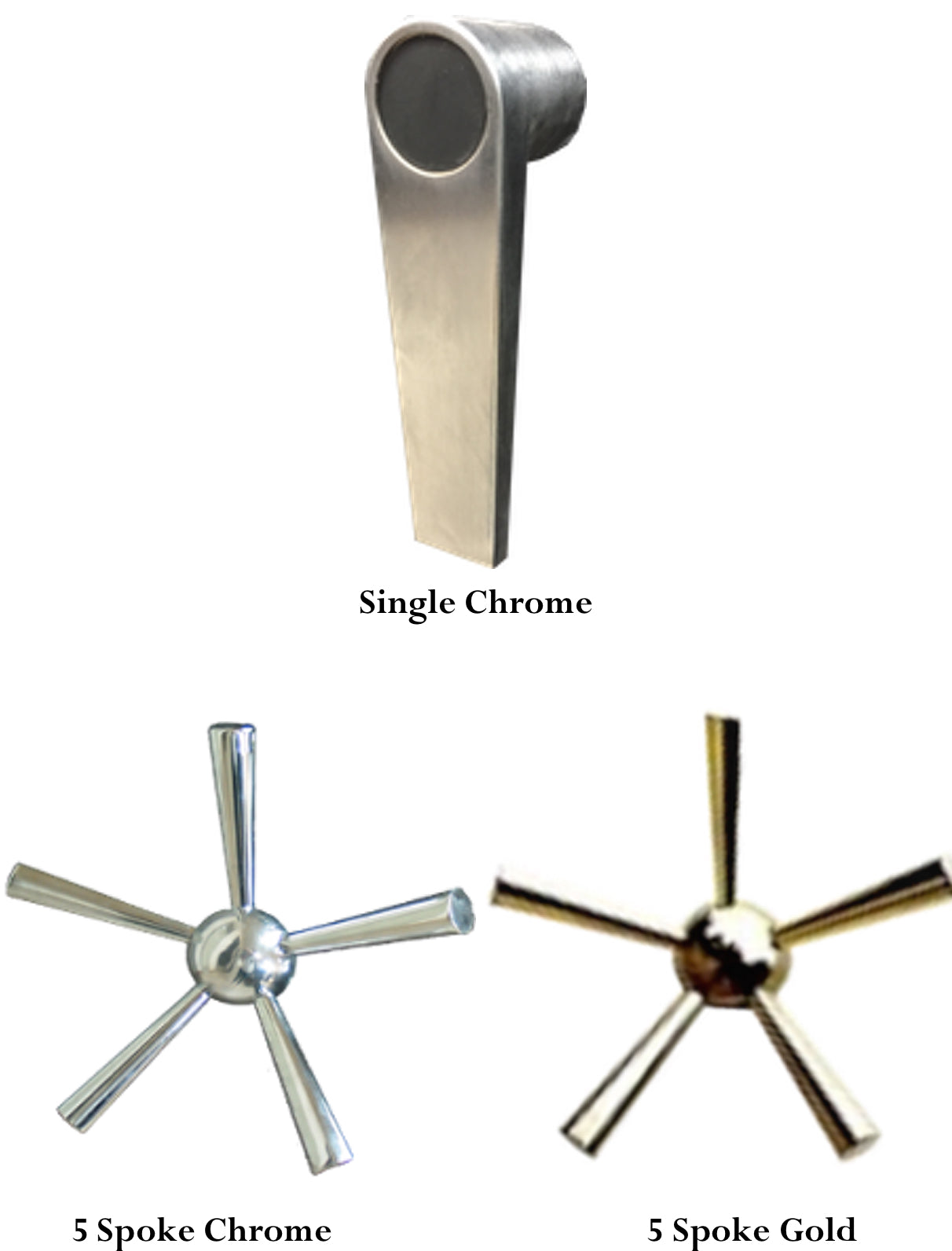

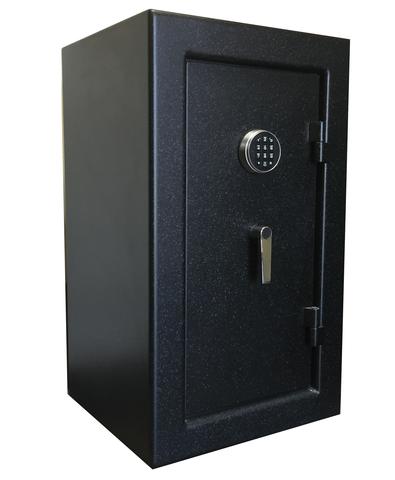

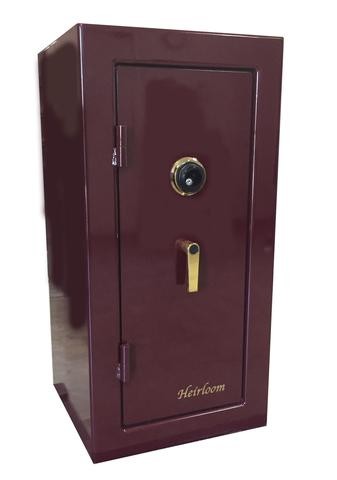

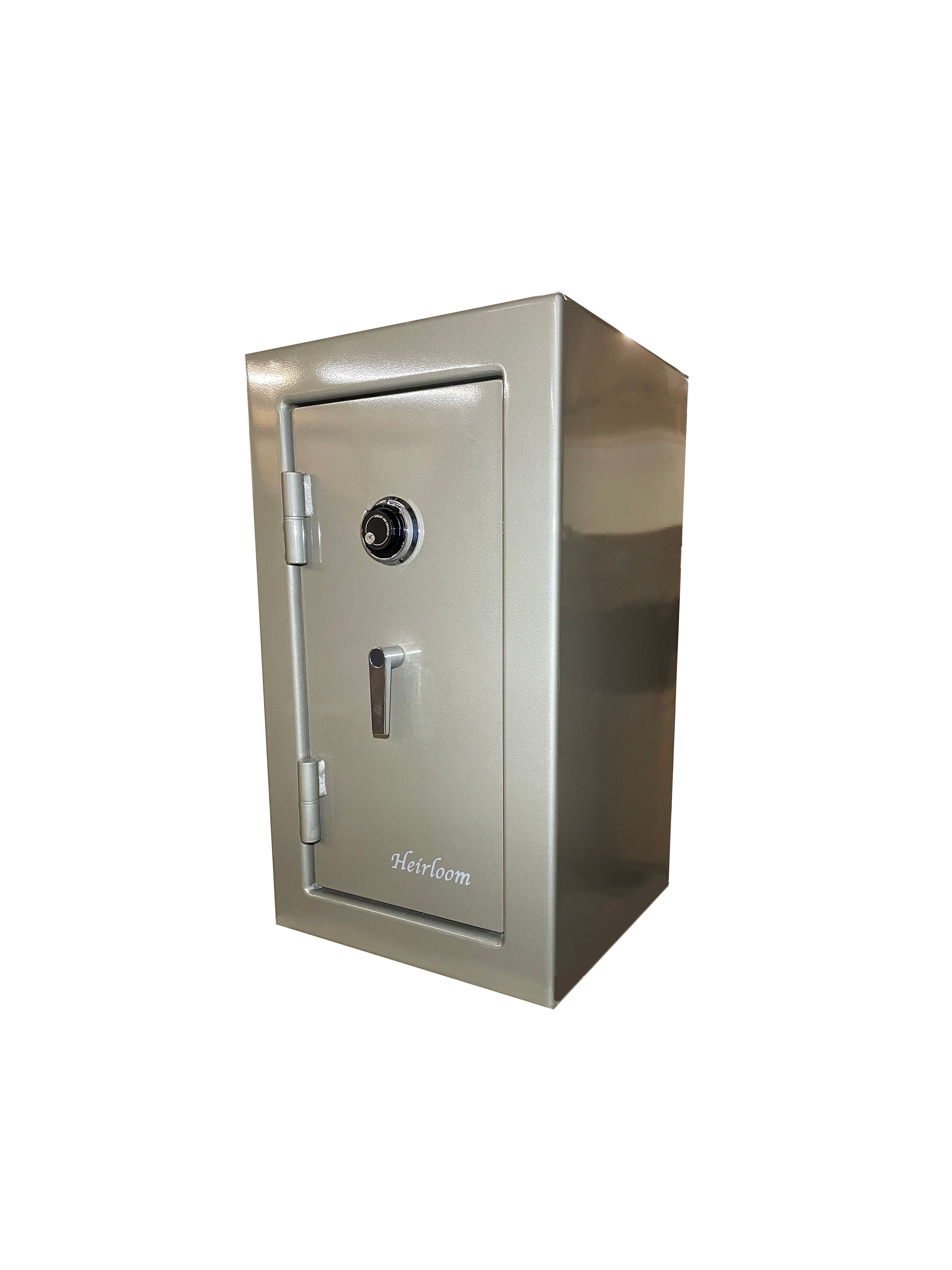

Exterior Finish: Select from a range of glossy paint options, painstakingly hand-applied and adorned with chrome, gold, or black logos. This safe boasts a single drop handle for a chic and polished look.

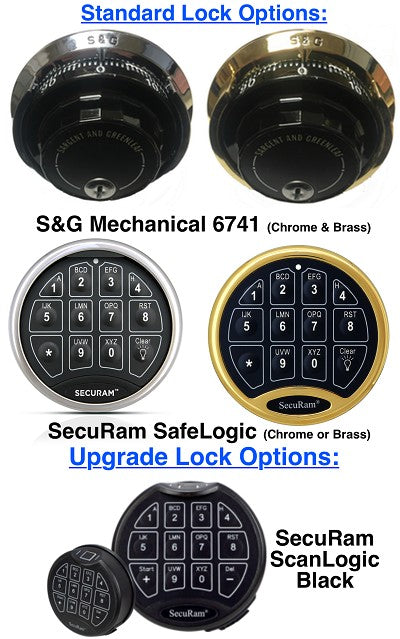

Group 2 Combination or Electronic Lock: The Sun Welding H-36 Home Burglar Fire Safe features a choice between a UL listed group 2 combination mechanical lock or an electronic lock. It offers multiple options from reputable manufacturers such as BigRed, S&G, LaGard, and SecuRam, including EMP-proof redundant style locks.
Bolt Works & Linkage: The Heirloom Series boasts a unique mounted bolting system, specifically engineered to prevent multiple types of attacks. Its innovative cam drive system ensures exceptional durability, even when faced with immense pressure. This safe is fortified with six 1" locking bolts, three of which are actively engaged on each side while the remaining three are secured on the hinge side. For an extra layer of protection, two re-lockers are safeguarded by Armor Hard Plate and an additional 1/2" steel plate..
Fire Rating: The Heirloom Series is equipped with fire insulation on all six sides, complemented by a heat-sensitive expanding fire seal that swells up to eight times its size to fill gaps around the door. The fire rating test involves placing the safe in an oven at 1200°F for a specified time, with the internal temperature reaching 350°F.
- 30 Minutes Standard weighs 299 lbs
- 1/4" Door w/ 10 Gauge Body 314 lbs
- 3/8" Door w/ 3/16" Body 375 lbs
- 1/2" Door w/ 1/4" Body 457 lbs
- Internal dimensions approximately 34.5"H x 19"W x 13.75"D
- 60 Minutes increases weight to 336 lbs
- 1/4" Door w/ 10 Gauge Body 351 lbs
- 3/8" Door w/ 3/16" Body 412 lbs
- 1/2" Door w/ 1/4" Body 494 lbs
- Internal dimensions approximately 33.25"H x 17.75"W x 12.5"D
- 90 Minutes increases weight to 374 lbs
- 1/4" Door w/ 10 Gauge Body 389 lbs
- 3/8" Door w/ 3/16" Body 450 lbs
- 1/2" Door w/ 1/4" Body 532 lbs
- Internal dimensions approximately 32"H x 16.5'W x 11.25"D
